CL1101 PoE Ethernet Extender

Patton_CopperLink_1101

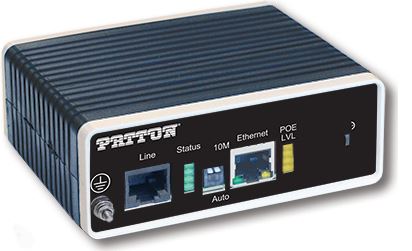

Patton CL1101

Patton’s CL1101 CopperLink PoE Extender Kits allows you to connect Ethernet powered devices over previously installed copper infrastructure. You can now reuse circuits previously meant for traditional non-IP applications such as alarms and analog phones, and instantaneously install PoE compliant devices like IP Phones with no added overhead costs.

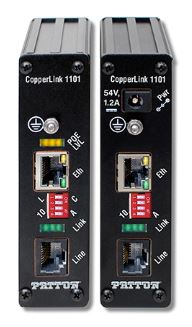

Desktop and industrial units are pictured above.  2 Pack kits (-2PK in the part number) include (1) local unit and (1) remote unit.  Now you can extend Ethernet and power to compliant or legacy PoE devices using already installed twisted-pair cable or coax.

PoE line power enables the distant CopperLink to power itself from the local CopperLink and provides about 15 Watts of power to its PoE Ethernet interface.

These devices are perfect for wireless access points WAPs, IP cameras, IP telephones, IP door stations, HVAC controls.  Now you can put those devices WHERE you want them —  you don’t need a power outlet nearby.

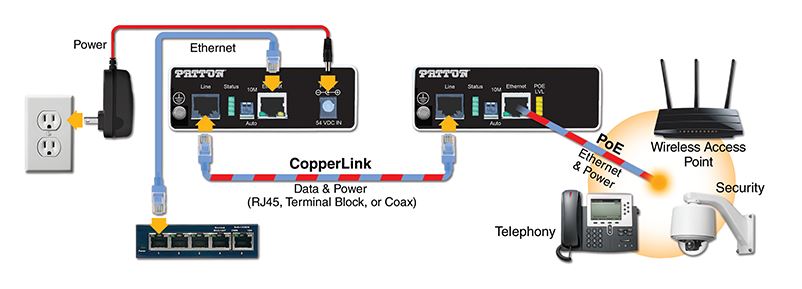

Patton_CopperLink_1101_APP

They come in standard CL1101, industrial CL1101E extended temperature packages, and IP67 versions as follows:

Standard Versions

CL1101/L/P/BNC/EUI
PoE Line Power Extender; 1x 10/100; RJ45 Line; 100-240VAC

CL1101/L/P/RJ45/EUI
CopperLink PoE Local Extender 1x 10/100; RJ45 Line; 100-240VAC

CL1101/R/PAFA/RJ45/E
CopperLink PoE Remote Extender 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered

CL1101/PAFA/RJ45/EUI-2PK
PoE Extender Kit; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC

CL1101/R/PAFA/BNC/E
PoE Remote Extender; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered

CL1101/R/PAFA/RJ45/E
PoE Remote Extender; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered

Industrial Versions:

CL1101E/PAFA/RJ45/EUI-2PK Industrial CopperLink PoE Extender Kit 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC

CL1101E/L/P/RJ45/EUI Industrial CopperLink PoE Local Extender; 1x 10/100; RJ45 Line; 100-240VAC

CL1101E/R/PAFA/RJ45/E Industrial CopperLink PoE Remote Extender 1x 10/100; 802.3af (mode A);RJ45 Line; Line Powered

CL1101E/L/P/BNC/EUI
PoE Industrial PoE Line Power Extender; 1x 10/100; BNC Line; 100-240VAC

CL1101E/PAFA/BNC/EUI-2PK
Industrial PoE Extender Kit; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered; AC Adapter 100-240VAC

CL1101E/R/PAFA/BNC/E
Industrial CopperLink PoE Remote Extender; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered

IP67 Versions

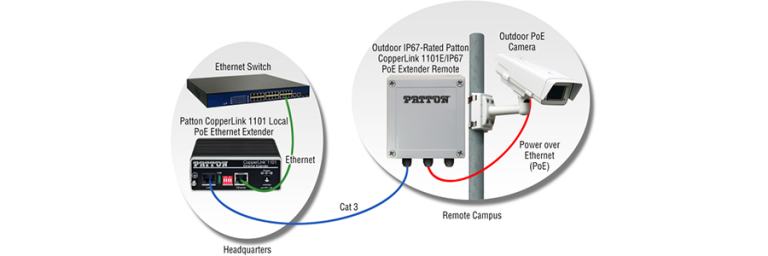

CL1101E/IP67/L/3CG/EUI Outdoor CopperLink PoE Local Extender; IP67; 1 x 10/100; 802.3af (mode A); 3 cable gland; 54VDC Input; 100-240VAC to DC Adapter

CL1101E/IP67/R/PAFA/3CG/E Outdoor CopperLink PoE Remote Extender; IP67; 1 x 10/100; 802.3af (mode A); 3 cable gland; Line Powered

Call for pricing or for more information.
