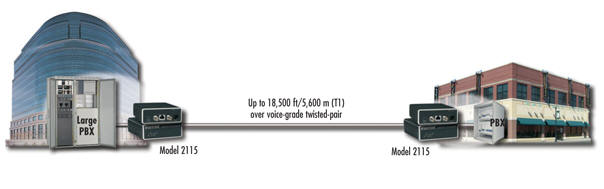

Patton_2115_App

Patton 2115 T1 Extenders

NOTE:  THESE UNITS HAVE BEEN DISCONTINUED.
However, we may have new old stock on hand.  Contact us.
WE RECOMMEND THE DCE/COPPER-T AS NORMALLY SUITABLE REPLACEMENTS

Patton 2113A/EUI-2PK
Patton 2115/EUI-2PK
Patton 2115/L/EUI
Patton 2115/R/EUI

Patton’s CopperLink-T Model 2113 & 2115 T1/E1 Extenders are the perfect choice for enterprises, integrators, and service providers needing to extend T1 and E1 circuits beyond their typical reach while conserving the number of wire pairs used.

With the CopperLink-T™ extenders, zero configuration is required. They operate in clear-channel mode, thereby facilitating the transparent extension of data and voice bearing circuits—including the F-bit on T1 circuits. The two active pins on the RJ connector are polarity insensitive, so you don’t even need to worry about which wire you connect on the line interface. Simply take them out of the box, put them on either side of the dry copper pair, connect your T1 or E1 device and the circuit will light up immediately!

(1) What makes the Patton 2115 T1 Extender so special?

They enable you to extend a T1 with just a single twisted pair of copper
They  extend your T1 up to 3 miles!

(2) How do you get 4 wire T1’s across a single copper pair?

The Patton 2115’s convert the T1 signalling to DSL…
then transport over a single twisted pair…
then back to T1 at the other end

(3)  How well do they work?

They work extremely well.
We’ve been selling these for a number of years
with a nearly 100% customer satisfaction rate.

The CopperLink-T™ simplifies transparent T1/E1 extension.

Plug-and-Play–units automatically link up when placed on opposite sides of a dry copper wire pair.
Units operate in clear channel mode to easily transport voice and data (F-bit included).

Uses only wires on the link.

Link interface is polarity insensitive to make connection to the twisted-pair wires easy.
Intuitive LEDs help you quickly troubleshoot line and circuit problems.
