Patton CL1212 Ethernet Extenders

Patton_CL1212

The Patton Electronics CL1212 are 168 Mbps Ethernet Extenders with two Ethernet ports.   These units are a return to Patton’s classic small form factor with only two Ethernet ports instead of 4 ports, as on the Patton CL1214 units.  These are hot sellers, and the CL1212 sets are always in stock at DCE Express.  Technical details may be found below.

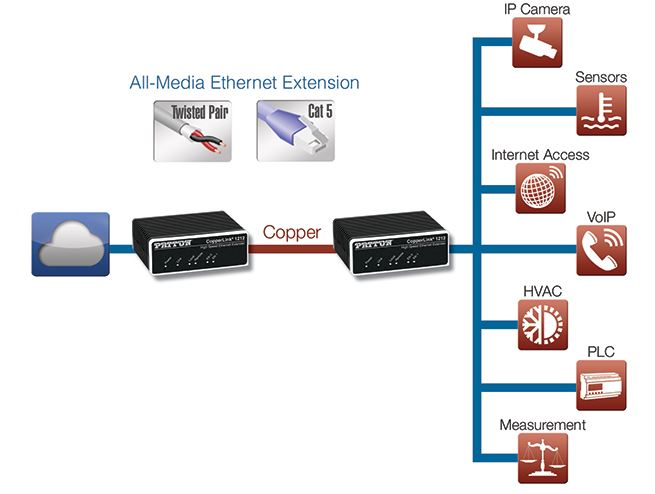

CL1212_APP

Here are the various models in CL1212 dual Ethernet Port family:

CL1212/EUI Ethernet Extender; 2 x 10/100BaseTX; RJ45 Line, 100-240VAC
CL1212/EUI-2PK Ethernet Extender Kit (Local and Remote); 2 x 10/100BaseTX; RJ45 Line, 100-240VAC
CL1212/TB/EUI Ethernet Extender; 2 x 10/100BaseTX; Terminal Block Line, 100-240VAC
CL1212/TB/EUI-2PK Ethernet Extender Kit (Local and Remote); 2 x 10/100BaseTX; Terminal Block Line, 100-240VAC

Extended temperature (E) and Conformal Coating for humidity (CC)  industrial grade units are as follows:



CL1212E/CC/EUI Extended Temp Extender; 2 x 10/100BaseTX; RJ45 Line Connector; Conformal Coated; 100-240VAC
CL1212E/CC/EUI-2PK Extended Temp Extender Kit; 2 x 10/100BaseTX; RJ45 Line Connector; Conformal Coated; 100-240VAC
CL1212E/EUI Extended Temp Extender; 2 x 10/100BaseTX; RJ45 Line Connector; 100-240VAC
CL1212E/EUI-2PK Extended Temp Extender Kit (Local and Remote); 2 x 10/100BaseTX; RJ45 Line Connector; 100-240VAC
CL1212E/TB/CC/EUI Extended Temp Extender; 2 x 10/100BaseTX; Terminal Block Line Connector; Conformal Coated; 100-240VAC
CL1212E/TB/CC/EUI-2PK Extended Temp Extender Kit; 2 x 10/100BaseTX; Terminal Block Line Connector; Conformal Coated; 100-240VAC
CL1212E/TB/EUI Extended Temp Extender; 2 x 10/100BaseTX; Terminal Block Line Connector; 100-240VAC
CL1212E/TB/EUI-2PK Extended TempExtender Kit (Local and Remote); 2 x 10/100BaseTX; Terminal Block Line Connector; 100-240VAC

Combining data flows from up to 2 network-enabled devices onto a single twisted pair or coax cable, the CopperLink Model CL1212 can deliver IP traffic up to 1.8 miles (3 km) away—well beyond the standard 328-foot (100-meter) Ethernet distance limitation.

With achievable line rates up to 168 Mbps, the CL1212 eliminates the bandwidth constraints commonly experienced with other copper-based transmission technologies. The Model 1212 is engineered to re-use existing infrastructure previously employed in such legacy applications as alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV. Many newer cabling standards are also supported, including Cat 5e, Cat 6 and Cat 7.

A built-in two-port Ethernet switch makes the CopperLink CL1212 ideal for delivering multiple IP information streams over a single cable. At a guardhouse or security kiosk for example, you could aggregate IP data from a laptop and a high-resolution IP video camera for simultaneous transmission over a single Ethernet connection.

A single-port version, the CopperLink Model CL1211 (available by special order) is ideal for applications requiring the enhanced security of a single Ethernet port.

If  you wish to drill deeper into the product specifications, installation, and other details, the product manual is downloadable here:

CL1212 Manual

Call if you have questions.
